TPS-EFF Transient Plane Source - Effusivity

A portable effusivity meter that uses a single-sided TPS sensor with test times of 2 and 10 seconds to understand the measurement of comfort with touch time fully.

Ideal für textiles, fabrics, and solids

Preis erhalten
Broschüre

Registrieren Sie sich, um die kostenlose Broschüre zu erhalten

Bitte geben Sie Ihre E-Mail-Adresse ein, um die Broschüre herunterzuladen.

    Wenn Sie auf die Schaltflächen klicken, erklären Sie sich mit Den Nutzungsbedingungen, Datenschutzerklärung. Ihre E-Mail ist bei uns 100% sicher.

    Video
    TPS-EFFusivity

    Eigenschaften

    Thermal Effusivity (W√s/m²K) is described as a materials ability to exchange heat with its surroundings. Surface haptics is a branch of psychology, describing the sense of touch, localized to the skin surface. The feeling of warmth and coolness (thermal effusivity) makes up the feeling of comfort, or the desired effect, which goes into the touched material surface. This is an important field of measurement for textiles, fabrics and solids.

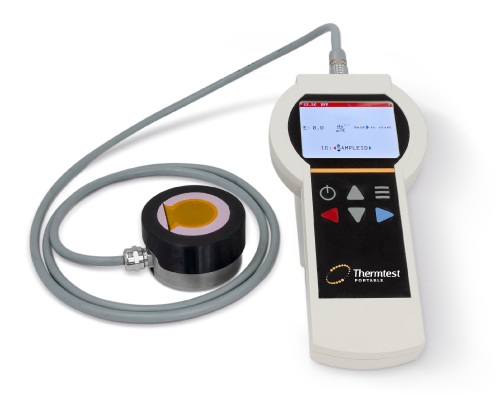

    The TPS-EFF (Transient Plane Source-EFFusivity) is a portable meter for direct determination of thermal effusivity of textiles and other low effusivity materials, in accordance with ASTM D7984-16. With a single measurement of 2 or 10 seconds in duration, materials can be accurately measured for thermal effusivity. The TPS-EFF uses a single-sided 30 mm diameter TPS sensor and short test times, to ensure one-dimensional heat flow. During the measurement, the sensor is heated using a constant current source, while the temperature rise of the sample is simultaneously recorded with time, by monitoring the change in electrical resistance of the wire spiral. The slope of temperature against a special function of time, is used to calculate the thermal effusivity of the material. For materials of relatively high effusivity, the slope will be lower, than materials of low effusivity.

    effusivity equation chart

    Mathematically, thermal effusivity equates to the square root of the product of thermal conductivity (W/m•K), Density (kg/m³) and Heat Capacity (J/kg•K). For certain materials, like textiles, there are often other modes of heat transfer, such as convection and radiation. These modes of heat transfer alter the thermal conductIVITY to thermal conductANCE. The resulting term used for measurement of materials like this is referred to as Thermal Effusance.

    • Follows International Standard ASTM D7984-16
    • Portable, Economical, and Accurate
    • Easy to use
    • Test time 2 and 10 seconds
    • No user calibrations required

    Specification

    Materialien

    Textiles, Fabrics and Solids

    Messfähigkeiten

    1-Dimensional

    Thermal Effusivity Range

    35 bis 1700 W√s/m²K

    Messzeit

    2 und 10 Sekunden

    Reproduzierbarkeit

    2%

    Genauigkeit

    5%

    Temperature Range*

    -10 bis 50°C

    Mindestgröße der Probe

    35 mm Durchmesser x Dicke abhängig von der Effusivität

    Maximale Stichprobengröße

    Unbegrenzt

    Bereich Luftfeuchtigkeit

    0 bis 90% (nicht kondensierend)

    Sensor-Durchmesser

    30 mm

    Normen

    ASTM D7984-16

    Testverfahren

    Transiente Flächenquelle (TPS)

    *Requires cooling/heating apparatus.

    Testing Sensor

    Standard TPS-EFF Sensor

    Standard TPS-EFF Sensor

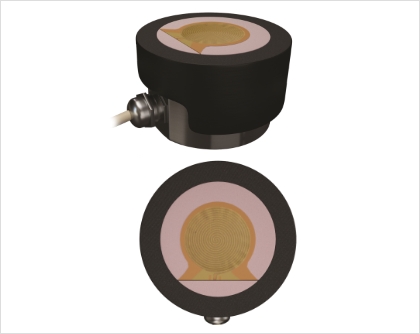

    The TPS-EFF comes with a standard 30 mm diameter, single-sided sensor for testing textiles, fabrics and solids. The spring loaded sensor can be used in two testing configurations; sample on top of sensor, or sensor on top of sample. At the push of a button, samples can be measured at 2 and 10 second test times. The additional 10 second test time allows for superior characterization of materials feeling of warmth, or coolness. Ambient temperature and results are conveniently displayed on the test screen. Results can then be saved and exported to Excel.
    TPS-EFF Setup

    Compression, Humidity and Temperature

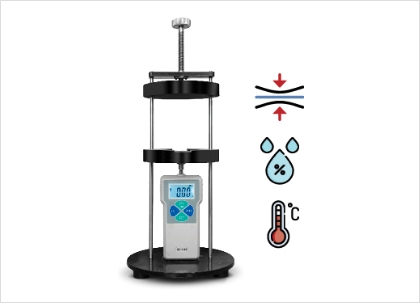

    Several application and environmental specific conditions can affect the thermal effusivity (feeling of warmth or coolness) of a material. When used with a compression stand and environmental chamber, the TPS-EFF is able measure the effect of compression, humidity and temperature on a materials thermal effusivity.

    Measurement Process

    tps-eff sample fabric

    The Sample

    Using the TPS-EFF, samples of unlimited size can be tested; the sample should be at least 30 mm in diameter to allow contact with the TPS-EFF sensor. Measurement of various textiles, fabrics, and solids are possible. Care should be taken to ensure sufficient thickness of the sample, and the divergence technique may be used to confirm this.

    Approximate Time: < 1 min.

    Place Sample on Sensor

    Place Sample on Sensor

    Once a sample has been prepared, measurements may be configured in one of two ways; sample placed on top of the sensor or sensor placed on top of the sample.

    Approximate Time: < 1 min.

    Measurement

    Measurement

    From the portable TPS-EFF, a test time of 2 or 10 seconds may be selected. The test activated with the push of a button.

    Approximate Time: < 1 min.

    Result Calculations

    Result Calculations

    Upon completion of tests, temperature and thermal effusivity results are displayed on the screen. Results can then be exported from the TPS-EFF to Excel, via Micro-SD or USB.

    Approximate Time: 1 min.
