MP-2 Measurement Platform

An advanced portable meter with unique selection of transient thermal conductivity sensors for a variety of applications, with a focus on primary measurements.

Best for liquids, solids, pastes and powders
MP-2
Thermal conductivity Measurement Platform – 2 (MP-2) users benefit from the convenience and accuracy gained when using primary testing methods. The MP-2 controller auto-detects the connected sensor and loads corresponding testing parameters. Measurements are easily performed with the smart on-board software and transferred to computer with an included Windows utility program.

Features

measurement platform features

The MP-2 is an advanced meter with unique selection of transient thermal conductivity sensors for a variety of applications, with a focus on primary measurements. The transient thermal conductivity sensors share similar principles of operation. The sensor wire is heated using a constant current source (q), and the temperature rise is recorded by monitoring the change in electrical resistance of the wire (TPS and THW) or by a resistance temperature detector device (TLS). For samples of high thermal conductivity, the lower the slope; for samples of low thermal conductivity, the higher the slope.

thermal conductivity graph

For convenience, the auto-testing function can be programmed on-board or with the MP-2 Windows utility software. Additional on-board, and utility features include the ability to review, save or delete, and export results to Excel. To maximize portability, power can be supplied by battery or USB cable. Informative screen icons keep users informed about power status and testing progress.

MP-2 software

MP-2 Sensors

SENSORS

MATERIALS

TPS-4

Solids, Pastes and Powders

THW-L3

Liquids and Pastes

TLS 50 mm

Rock and Concrete

TLS 100 mm

Soils and Polymers

TLS 150 mm

Soils and Polymers

TLS 100 mm – vCp

Soils and Polymers

TPS-EFF

Textiles and Fabrics

TPS Specifications (Transient Plane Source)


TPS-4

Materials

Polymers and Composites

Measurement Capabilities

Bulk Properties

Thermal Conductivity

0.03 to 5 W/m•K

Measurement Time

10 and 20 seconds

Reproducibility

± 2%

Accuracy

± 5%

Temperature Range

10 to 40°C

Minimum Sample Size

35 mm diameter or square

Maximum Sample Size

Unlimited

Sensor Diameter

12.8 mm Diameter

Test Method

Transient Plane Source (TPS)

TLS Specifications (Transient Line Source)


TLS 50mm

TLS 100mm

TLS 150mm

Materials

Concrete, Rock, and Polymers

Soils, Pastes, Powders, and Solids

Soils, Pastes, Powders, and Solids

Measurement Capabilities

Bulk Properties

Bulk Properties

Bulk Properties

Thermal Conductivity

0.3 to 5 W/m•K

0.1 to 5 W/m•K

0.1 to 3 W/m•K

Thermal Resistivity

0.2 to 3.3 mK/W

0.2 to 10 mK/W

0.3 to 10 mK/W

Measurement Time

3 min.

3 min.

3 min.

Reproducibility

± 2%

± 2%

± 2%

Accuracy

± 5%

± 5%

± 5%

Temperature Range

-40 to 100°C

-40 to 100°C

-40 to 100°C

Minimum Sample Size

50 mm in length, 50 mm diameter

100 mm in length, 50 mm diameter

150 mm in length, 50 mm diameter

Largest Sample Size

Unlimited

Unlimited

Unlimited

Standards

Modified ASTM D5334

ASTM D5334, IEEE 442-1981

ASTM D5334, IEEE 442-2017


TLS 100mm - vCp

Materials

Soils, Pastes, Powders, and Solids

Measurement Capabilities

Bulk Properties

Thermal Conductivity

0.1 to 5 W/m•K

Reproducibility

± 2%

Accuracy

± 5%

Thermal Diffusivity

0.05 to 1.5 mm²/s

Accuracy

± 10%

Volumetric Specific Heat

Up to 2.5 MJ/m³K

Accuracy

± 15%

Temperature Range

-40 to 100°C

Minimum Sample Size

100 mm in length, 50 mm diameter

Largest Sample Size

Unlimited

Standards

ASTM D5334

THW Specifications (Transient Hot-Wire)


THW-L3

Materials

Liquids, Pastes, and Powders

Measurement Capabilities

Bulk Properties

Thermal Conductivity

0.01 to 1 W/m•K

Measurement Time

1 second

Reproducibility

± 2%

Accuracy

± 5%

Temperature Range

10 to 40°C

Minimum Sample Size

15 mL

Largest Sample Size

Unlimited

Standards

ASTM D7896-19

TPS-EFF Specifications (Transient Plane Source)


TPS-EFF

Materials

Textiles, Fabrics, and Solids

Measurement Capabilities

1-Dimensional

Thermal Effusivity

35 to 1700 W√s/m²K

Measurement Time

2 and 10 seconds

Reproducibility

± 2%

Accuracy

± 5%

Temperature Range

-10 to 50°C

Minimum Sample Size

35 mm diameter x thickness dependent on Effusivity

Maximum Sample Size

Unlimited

Moisture Range

0 to 90% (non-condensing)

Sensor Diameter

30 mm

Test Method

Transient Plane Source

Standard

ASTM D7984-16

Transient Plane Source (TPS) Models Comparison


MP-1 with TPS

MP-V

TPS-3

TPS-4

Models

MP-1 with TPS

MP-V with TPS

TPS-3

MP-2 with TPS-4

Thermal Conductivity

0.005 to 2000 W/m•K

0.01 to 100 | 0.01 to 500 W/m•K

0.03 to 70 W/m•K

0.03 to 5 W/m•K

Additional Properties

Thermal Diffusivity, specific heat, thermal effusivity, thermal contact resistance and thermal resistance

Thermal diffusivity, specific heat and thermal effusivity

Thermal diffusivity and specific heat

N/A

Measurement Time

0.25 to 2560 seconds

2 to 160 seconds

10 to 160 seconds

10 to 40 seconds

Sample Size*

5 mm diameter x 0.01 mm height to unlimited

10 mm diameter x 0.05 mm height to unlimited

40 mm diameter x 5 mm height to unlimited

35 x 35 to unlimited

Reproducibility

1%

1 to 2%

2%

No

Accuracy

3%

5%

5%

Yes

Temperature Range

-160 to 1000 °C

-75 to 300 °C

10 to 80 °C

10 to 40 °C

Optional Sensors

THW, TLS, MTPS, THS

THW, TLS, MTPS

N/A

THW, TLS

Standards

ISO 22007-2, ISO 22007-7,

GB/T 32064

ISO 22007-2, ISO 22007-7,

GB/T 32064

N/A

N/A

iTPS PArameter Automation

Yes

Yes

N/A

N/A

Single-Sided

Yes

Yes | MTPS (Ø 12.8 mm)

N/A

Yes

*Dependent on module in the end of the table

Transient Hot Wire (THW) Models Comparison


mp-1 thw

THW-L1

thw-l2

Models

MP-1 with THW

THW-L1

THW-L2

MP-2 with THW-L3

Materials

Liquids, Pastes, and Powders

Liquids, Pastes, and Powders

Liquids, Pastes, and Powders

Liquids, Pastes, and Powders

Testing Modules

Bulk

Bulk

Bulk

Bulk

Other Materials

Solids with TPS

No

No

Solids with TPS, TLS

Thermal Conductivity

0.01 to 2 W/m•K

0.01 to 2 W/m•K

0.01 to 2 W/m•K

0.01 to 1 W/m•K

Sample Size

20 mL

20 mL

15 mL

15 mL

Additional Properties

Thermal Diffusivity and Specific Heat

Thermal Diffusivity and Specific Heat

No

No

Temperature Range

Room Temperature

10 to 200 °C | -50/-15/0 to 200 °C

-160/-45/-15/0 to 300 °C

10 to 200 °C | -50/-15/0 to 200 °C

-160/-45/-15/0 to 300 °C

-50 to 100 °C

Room Temperature

10 to 40 °C

Pressure

Up to 35 bar*

Up to 35 bar*

Ambient

Ambient

Test Times

1 second

1 second

1 second | < 5 seconds

1 second

Data-Points

400 points/second

100 points/second

60 points/second

60 points/second

Thermal Conductivity Accuracy

2 %

2 %

5 %

5 %

Repeatability

1 %

1 %

2 %

2 %

Standards

ASTM D7896-19

ASTM D7896-19

ASTM D7896-19

ASTM D7896-19

External Cooling Apparatus Required

No | Yes*

No | Yes*

Yes

Yes

*Depending on the Model used

Sensor Comparison

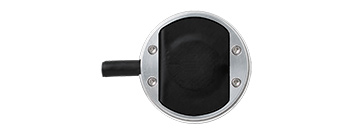

TPS-4 Sensor

TPS-4

Transient Plane Source

0.03 to 5 W/m•K

Thermal Conductivity

10 to 40°C

Temperature Range

± 5%

Accuracy

THW-L3 sensor

THW-L3

Transient Hot Wire - Liquids

0.01 to 1 W/m•K

Thermal Conductivity

10 to 40°C

Temperature Range

± 5%

Accuracy

TLS-50mm sensor

TLS 50mm

Transient Line Source

0.3 to 5 W/m•K

Thermal Conductivity

-40 to 100°C

Temperature Range

± 5%

Accuracy

TLS-100mm sensor

TLS 100mm

Transient Line Source

0.1 to 5 W/m•K

Thermal Conductivity

-40 to 100°C

Temperature Range

± 5%

Accuracy

TLS-150mm sensor

TLS 150mm

Transient Line Source

0.1 to 3 W/m•K

Thermal Conductivity

-40 to 100°C

Temperature Range

± 5%

Accuracy

TLS-100 vCp needle

TLS 100 mm - vCp

Transient Line Source

0.1 to 5 W/m•K

Thermal Conductivity

-40 to 100°C

Temperature Range

± 5%

Accuracy

TPS-EFF Sensor

TPS-EFF

Transient Plane Source

35 to 1700 W√s/m²K

Thermal Effusivity

-10 to 50°C

Temperature Range

± 5%

Accuracy
